Intall Guides




PROFFESIONAL INSTALLATION RECOMMENDED..

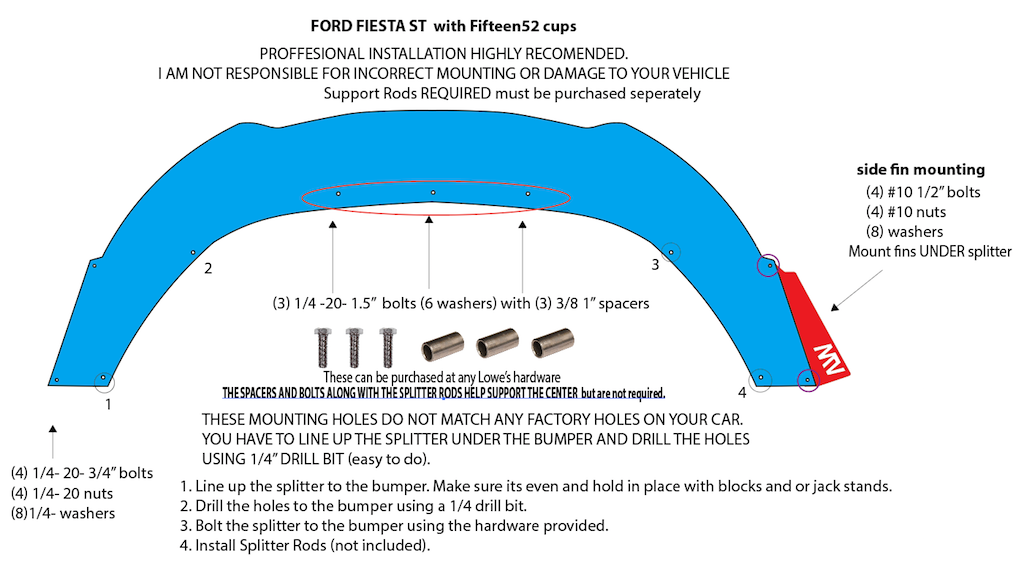

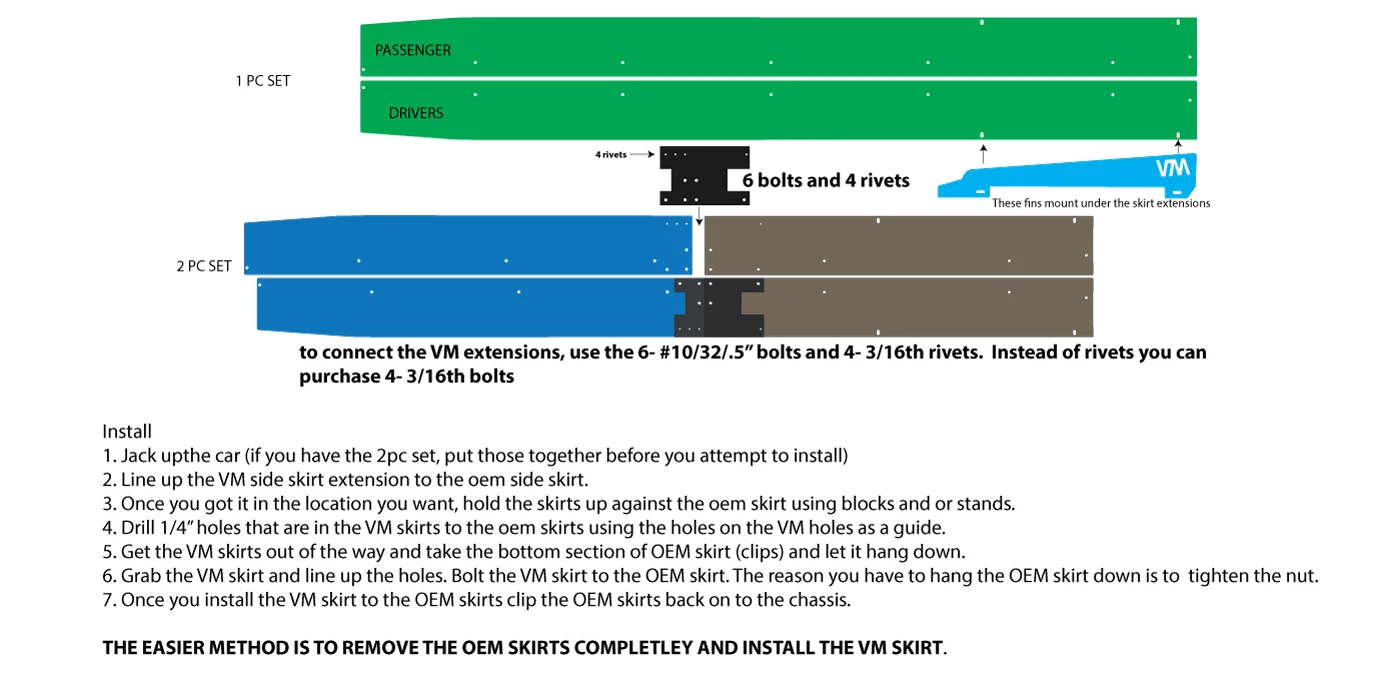

**OPEN IMAGE IN NEW TAB OR SAVE IT TO SEE IT CORRECTLY**

  • HAVING A FRIEND WILL HELP!!!

  • 3M TAPE CAN BE USED FOR THE SIDES, BUT BOLTING IS RECOMMEND

  • BEFORE YOU MOUNT PLEASE PUT THE DIFFUSER TOGETHER

  • SUPPORT BRACKETS MOUNT TO THE MUFFLER HANGER BOLT. Loosen the bolt and slide the bracket between the bolt.

  • You might have to tweak or bend the brackets slightly to line up to the holes on the diffuser base.






ATTENTION :::: YOU CANNOT USE THE SPACERS FOR THE 2015-2018 FOCUS ST in the CENTER.  YOU CAN ONLY USE THE 3 BOLTS.  PLEASE ORDER SUPPORT RODS!!
